ERUPTION ID：15-0970

BASIC INFORMATION

Eruption onset date May. 21.2015
Eruption onset time (LST) 10:20
Eruption column top (m) 4300
Total ashfall amount (kg) 2.32E+07
Total ashfall area (km2) 136.02

SPECIFIC INFORMATION

BASIC INFORMATION .1
BASIC INFORMATION .2


Fig. 1-1 Photo from Tarumizu, Kagoshima (courtesy of Dr.Iino ,Kumamoto Univ.).
Fig. 1-2 Photo from Kinkodai, Kagoshima (courtesy of Dr. Iino,Kumamoto Univ.).

TRM-XMP Radar (MLIT)

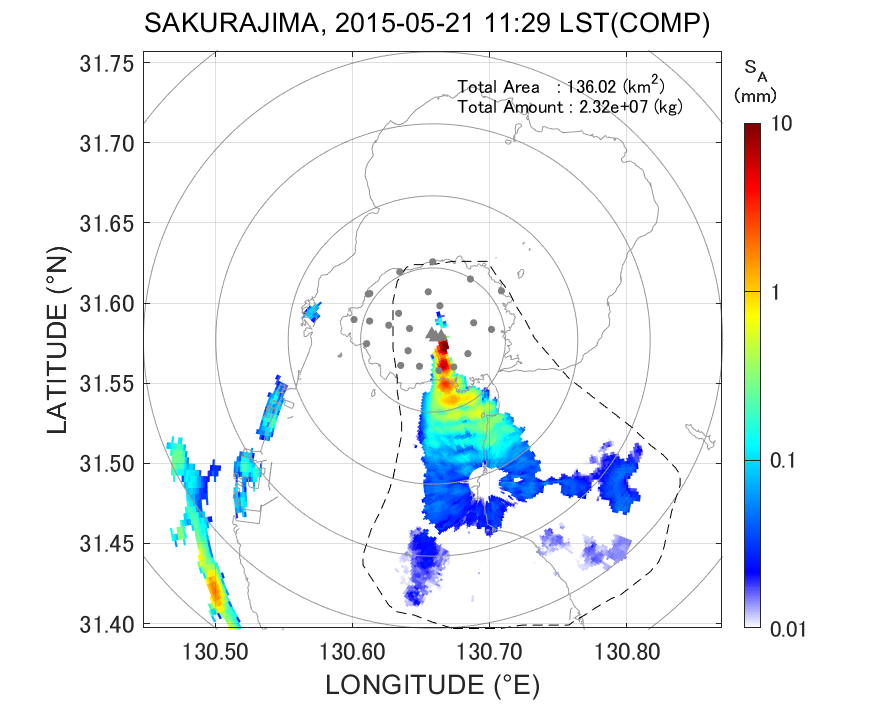

Fig. 2-1 Accumulated ash fall distribution (animation).

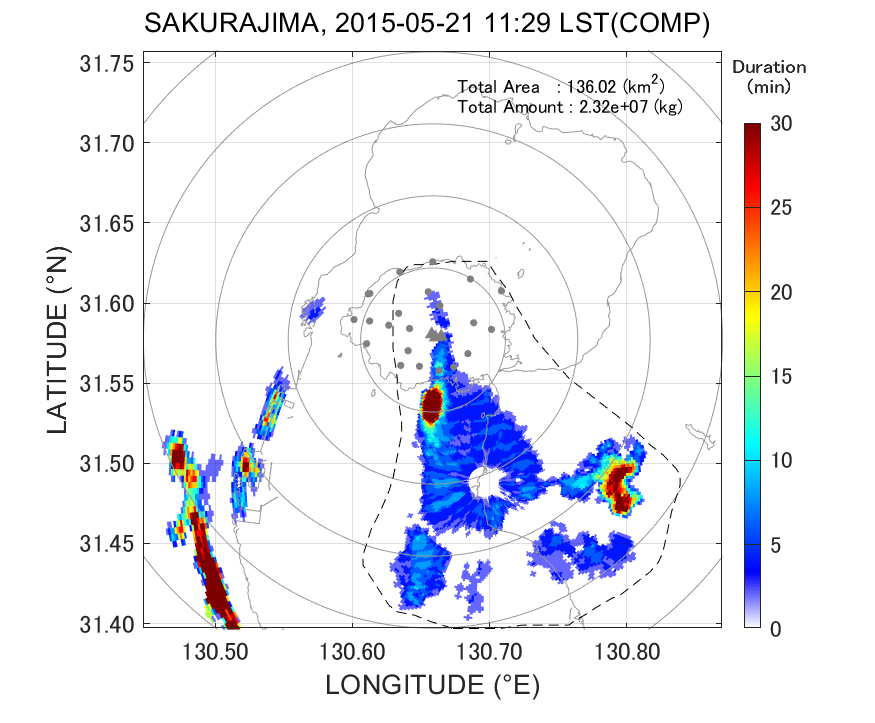

Fig. 2-2 Ash fall duration time (animation).

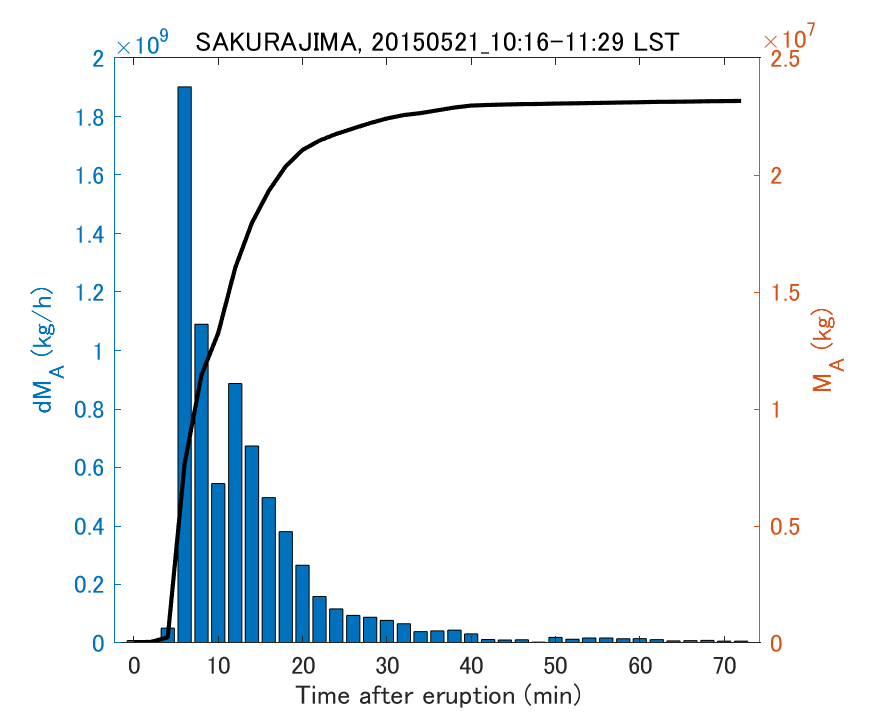

Fig. 2-3 Temporal change of total ash fall amount.
Fig. 2-3 Temporal change of total ash fall amount.

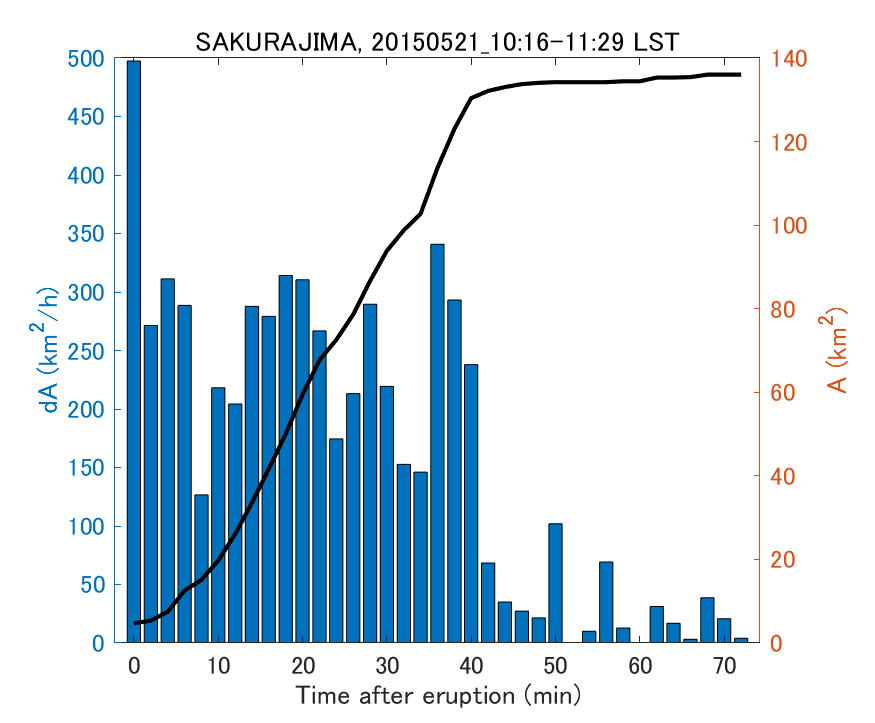

Fig. 2-4 Temporal change of total ash fall area.
Fig. 2-4 Temporal change of total ash fall area.

Meteorological Information

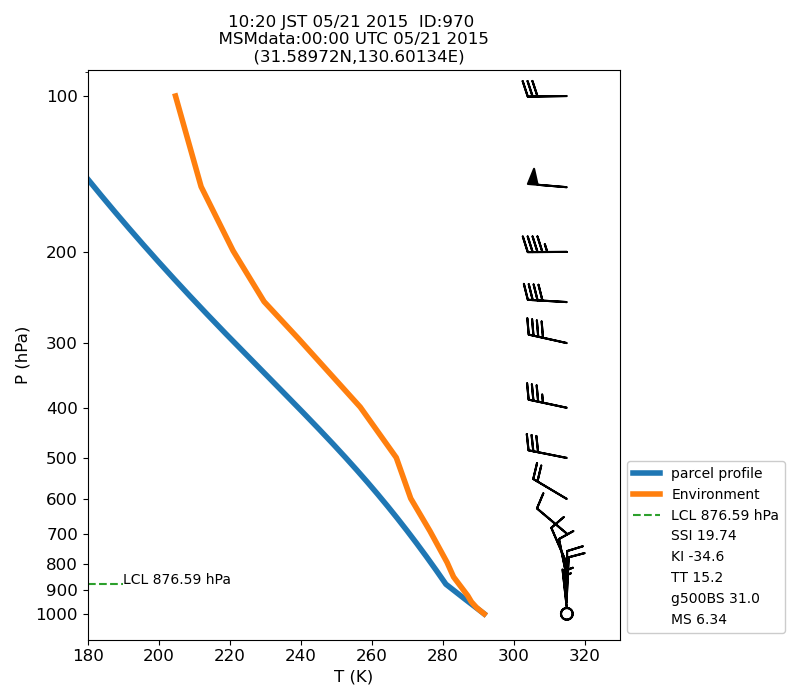

Fig. 7-1?Atmospheric instability in the upper atmosphere shown by the emagram.
Fig. 7-1?Atmospheric instability in the upper atmosphere shown by the emagram.

NOTE

計算式更新2026.1.22現在　trm-xmpの積算値は、15-0970,15-0971を合算したもの
