ERUPTION ID：13-1047

BASIC INFORMATION

Eruption onset date Nov. 24.2013
Eruption onset time (LST) 16:23
Eruption column top (m) 4000
Total ashfall amount (kg) 1.15E+07
Total ashfall area (km2) 59.30

SPECIFIC INFORMATION

BASIC INFORMATION .1
BASIC INFORMATION .2

TRM-XMP Radar (MLIT)

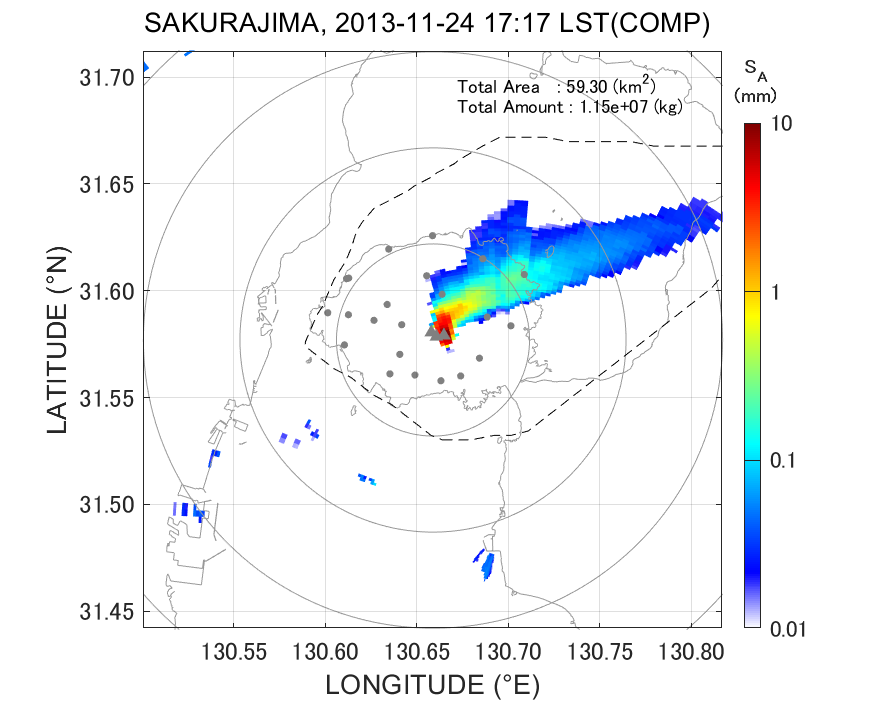

Fig. 2-1 Accumulated ash fall distribution (animation).

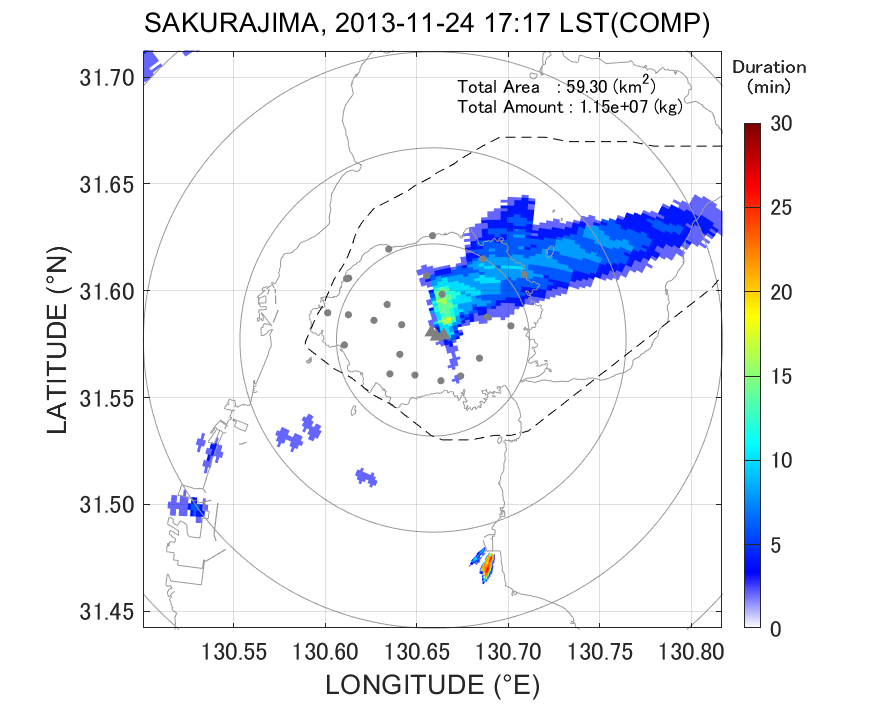

Fig. 2-2 Ash fall duration time (animation).

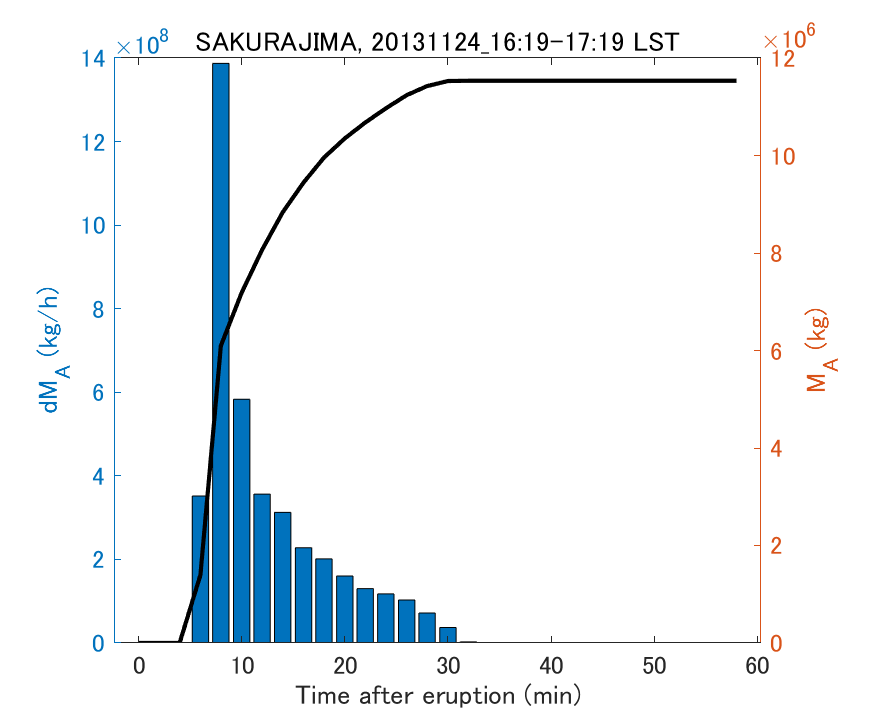

Fig. 2-3 Temporal change of total ash fall amount.
Fig. 2-3 Temporal change of total ash fall amount.

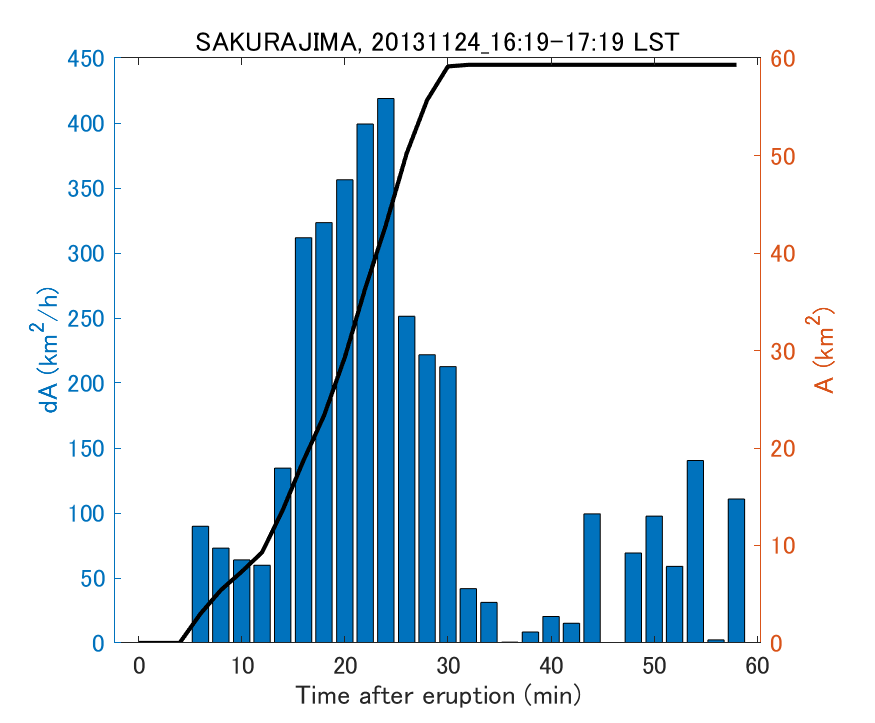

Fig. 2-4 Temporal change of total ash fall area.
Fig. 2-4 Temporal change of total ash fall area.

Meteorological Information

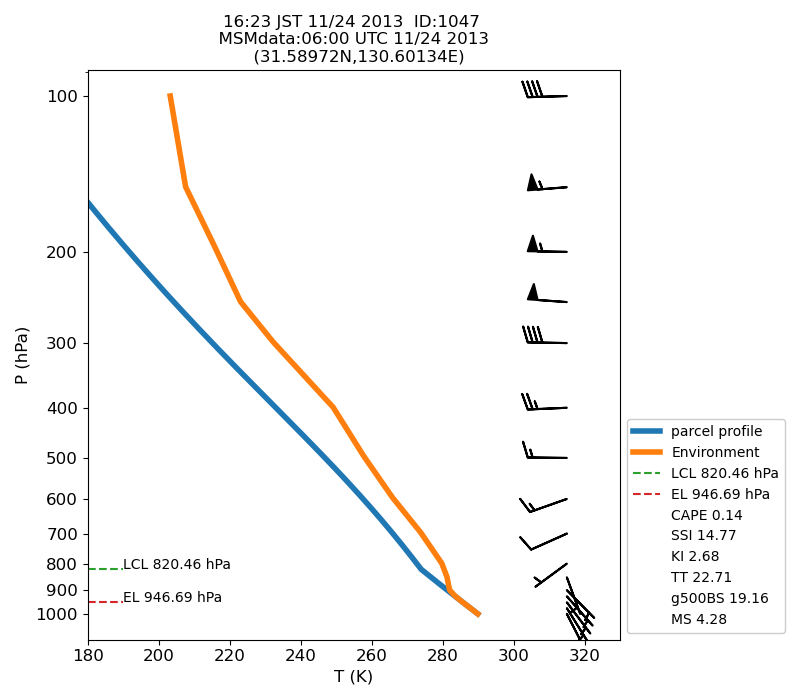

Fig. 7-1?Atmospheric instability in the upper atmosphere shown by the emagram.
Fig. 7-1?Atmospheric instability in the upper atmosphere shown by the emagram.

NOTE

計算式更新2026.1.22現在
