ERUPTION ID：13-0954

BASIC INFORMATION

Eruption onset date Oct. 21.2013
Eruption onset time (LST) 10:35
Eruption column top (m) 4500
Total ashfall amount (kg) 5.39E+06
Total ashfall area (km2) 31.96

SPECIFIC INFORMATION

BASIC INFORMATION .1

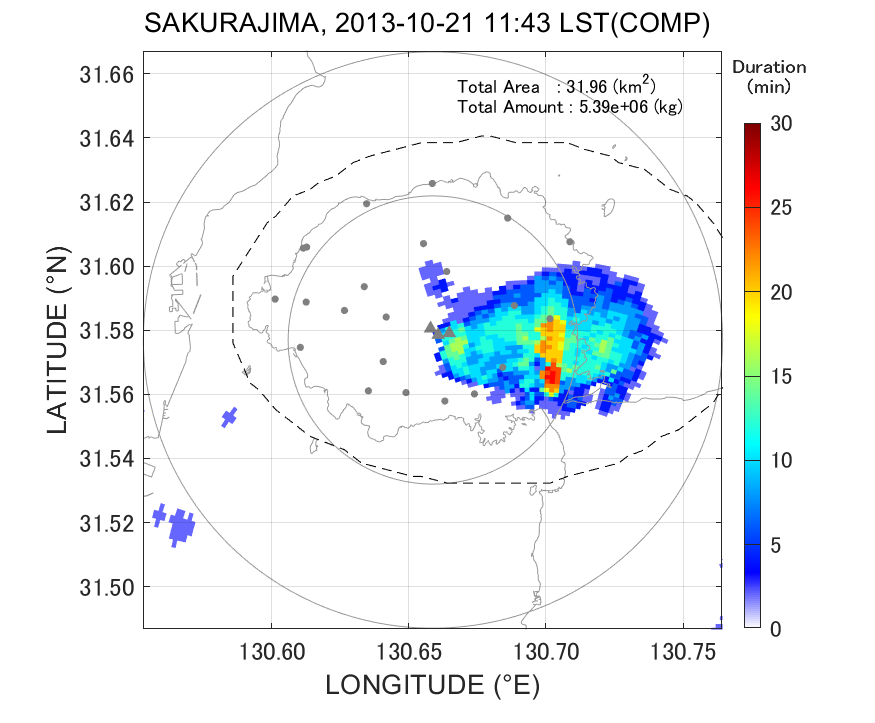

BASIC INFORMATION .2

TRM-XMP Radar (MLIT)

Fig. 2-1 Accumulated ash fall distribution (animation).
Fig. 2-2 Ash fall duration time (animation).

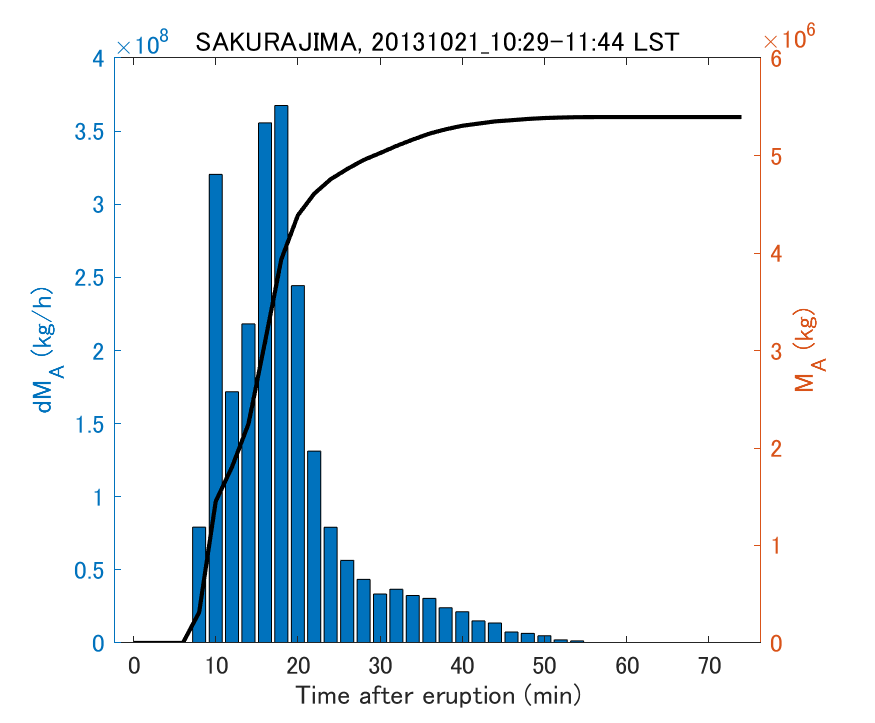

Fig. 2-3 Temporal change of total ash fall amount.
Fig. 2-3 Temporal change of total ash fall amount.

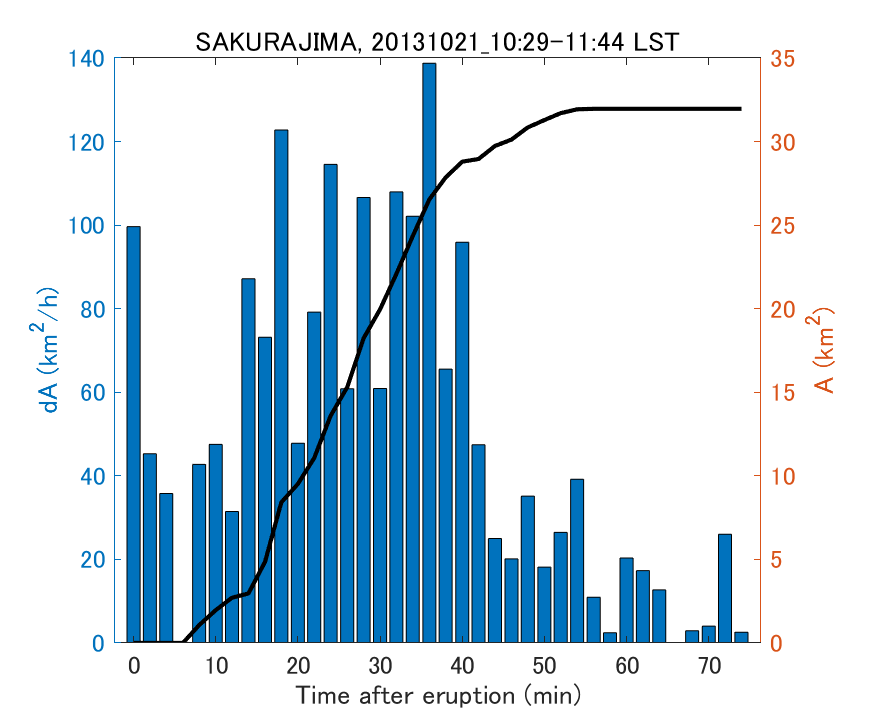

Fig. 2-4 Temporal change of total ash fall area.
Fig. 2-4 Temporal change of total ash fall area.

Meteorological Information

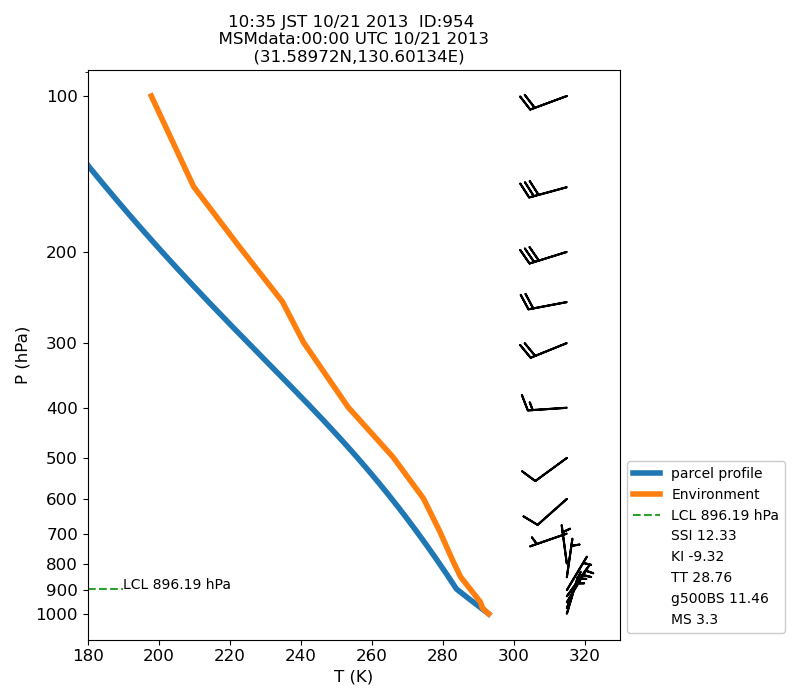

Fig. 7-1?Atmospheric instability in the upper atmosphere shown by the emagram.
Fig. 7-1?Atmospheric instability in the upper atmosphere shown by the emagram.

NOTE

計算式更新2026.1.22現在
